Price Range : $3000 to $3300 / Set based on the configuration
Brand : Jx Auto CNC
Model : JX-1325
Category : CNC Router- Multi-head CNC
Payment: TT, Visa, Mastercard, Credit Cards, Paypal
Supply Ability : 200 Sets In Stock / Month
Policy : Shopping, Return, Refund Policy
This rotary axis engraving machine has a small working area. With a small footprint and it is more flexible and convenient to use. Therefore, it is suitable for meeting the processing needs of the advertising industry, home use or small businesses.

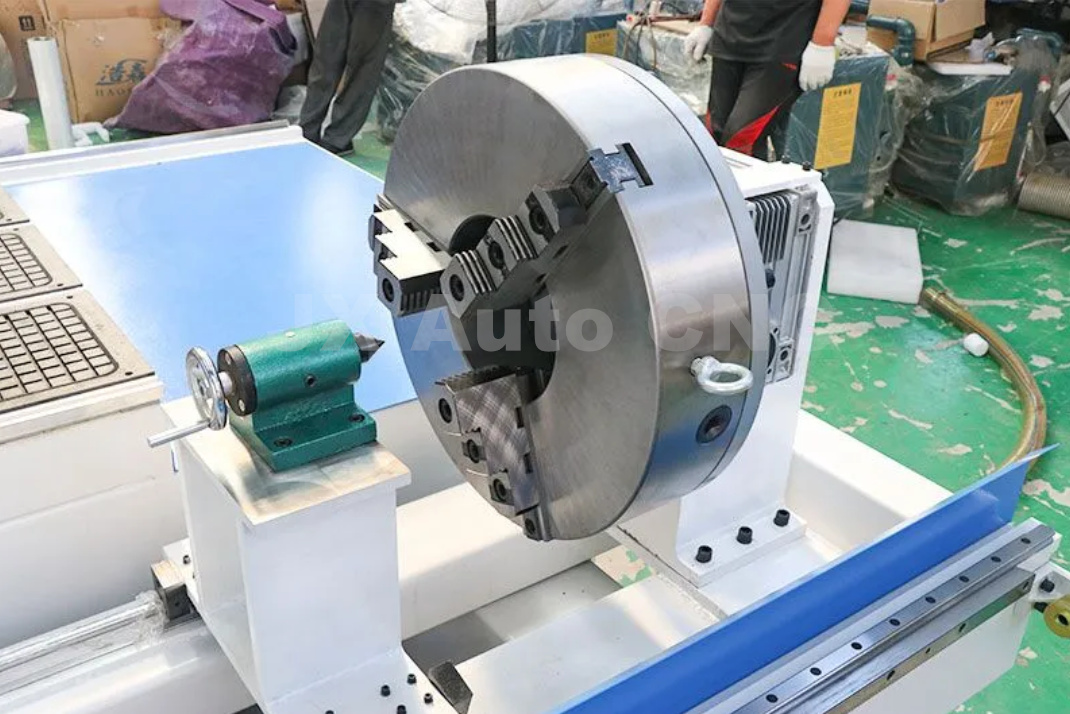

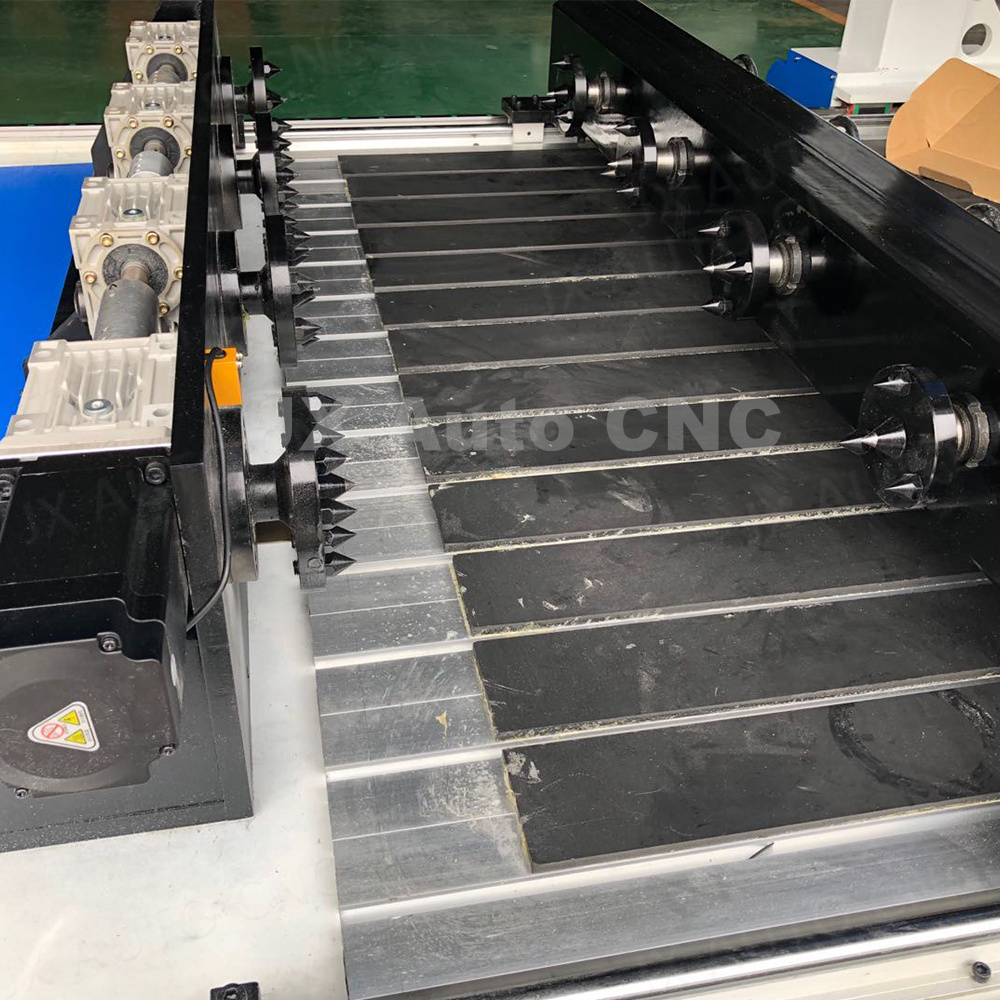

1. Equipped with the rotary device, it can be used to process some workpieces like stair railings, table and chair legs, Roman columns, etc.

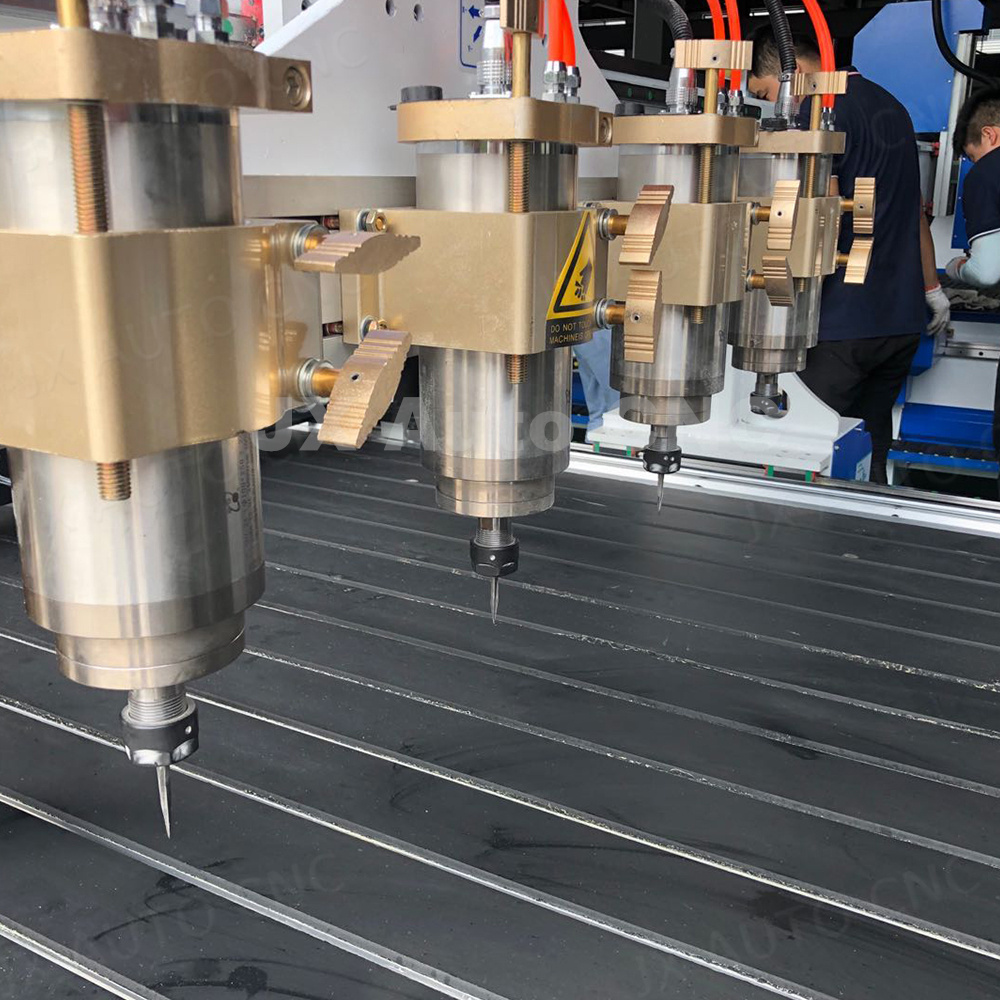

2. Adopting Changsheng water cooling spindle, it has the features of good cooling effect and low noise.
3. With a small footprint and it is more flexible and convenient to use.
4. Imported parts ensure maximum machine life.
| Machine | Multi head cnc router |
| working area | Diameter : 200mm Length:1200mm |
| Chuck Diameter | 125mm |
| Feeding Height | 200 mm |
| X Y movement | Rack and pinion |
| Z movement | Ball screw transmission |
| Guide | HIWIN Guide rail |
| Max idling speed | 10000mm/min |
| Max engraving speed | 8000mm/min |
| Spindle | 2.2kw water-cooling spindle *8 |
| inverter | Fuling inverter |
| Drive motors | Servo motor |
| Control system | Weihong control systemDSP control system |
| Working voltage | 220V/380V or customized |
| Command code | G code |
| software | Artcam,type 3,etc |
1、I need a CNC router, can you give me some suggestions?
A : Sure, we will give suggestions of the most suitable machine. Before that, we need to know some information, such as effective processing area, materials, etc., to determine the main parameters.
2. Which kind of materials can be processed on this machine?
A: Wood, mdf, stone, acrylic, glass, plastic, foam, aluminium, copper.
and almost all kinds of non-steel materials.
3. Are you a factory or trading company?
A : We are the manufacturer and we have 10 years factory experience As only the machine made by ourself, the quality can be trusted, and the most important thing is that we can do better after-sales service We know how to fix the problem of every part easily, so welcome to visit to our factory.
4.How should I pay for my order ?
A : You need to pay 30% as prepayment at first, then we will start to make production. When the machine is completed, we will send pictures or videos to you, and then you need to pay the balance.We will ship the machine to you after we receive your full payment.
5.How long is the delivery time?
A : For standard machines it will be 7-10 days: For non-standard machines and customized machines according to clients’ specific requirements. it will be 15 to 30 days.
Cylindrical Hard Wood Fast Engraving Cnc Router

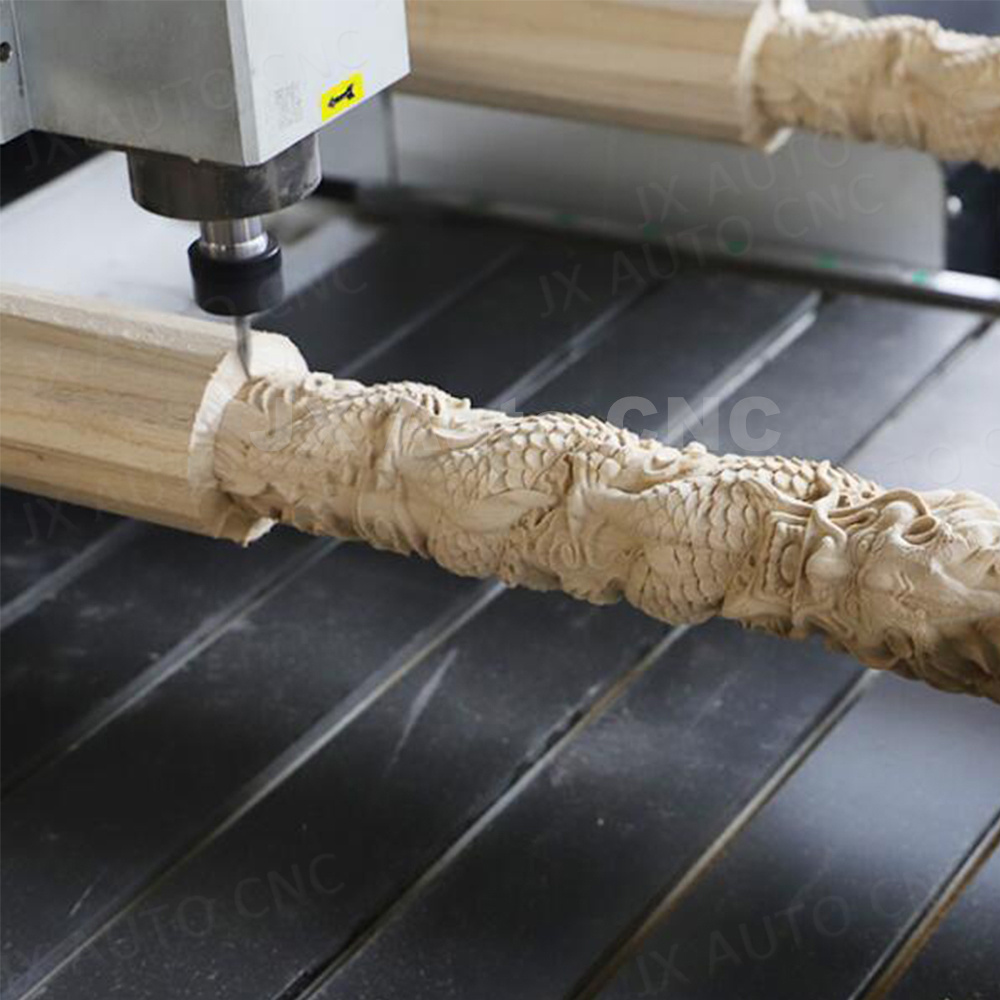

1.With rotary device ,It can process the round objects or square objects

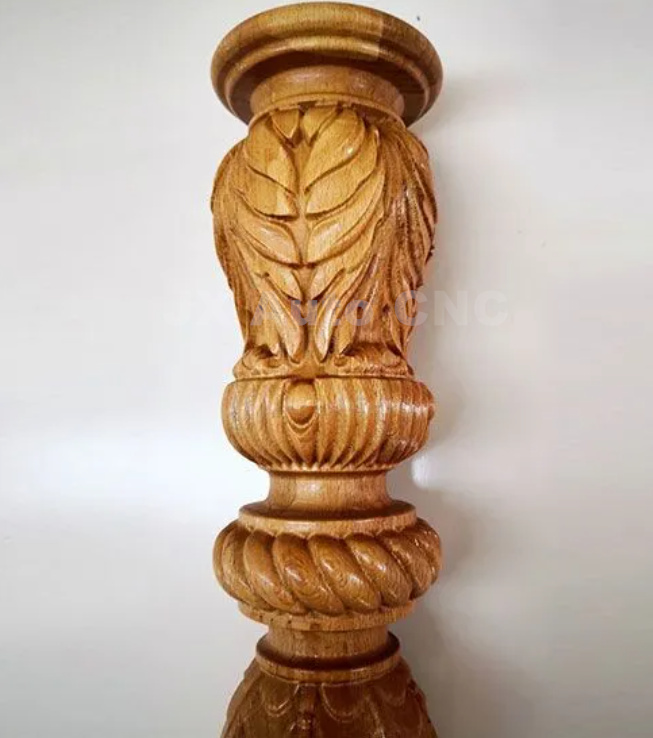

2.It can do relief sculputre and 3d engraving on material
3.Advertising industry : sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making
4.Furniture industry : cupboard doors,interior doors, sofa legs, headboards, antique furniture, wooden door, screen, craft sash, composite gates etc
