Price Range : $3900 / Set based on the configuration
Brand : Jx Auto CNC
Model : jx-1325
Category :CNC Router -Multi-head CNC
Payment: TT, Visa, Mastercard, Credit Cards, Paypal
Supply Ability : 200 Sets In Stock / Month
Policy : Shopping, Return, Refund Policy

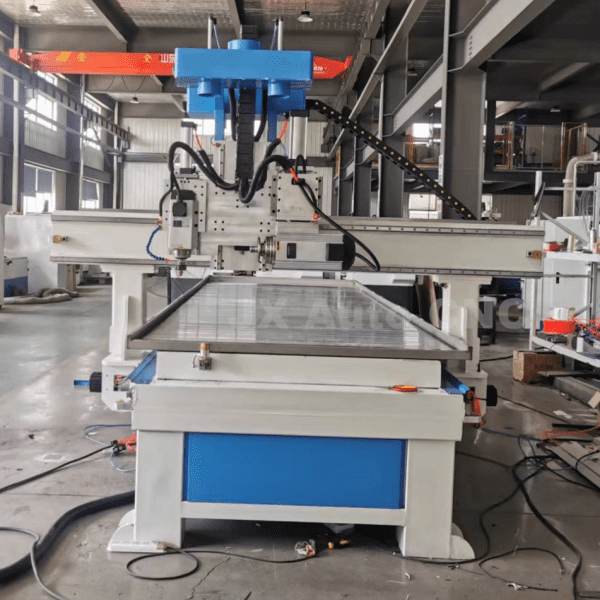

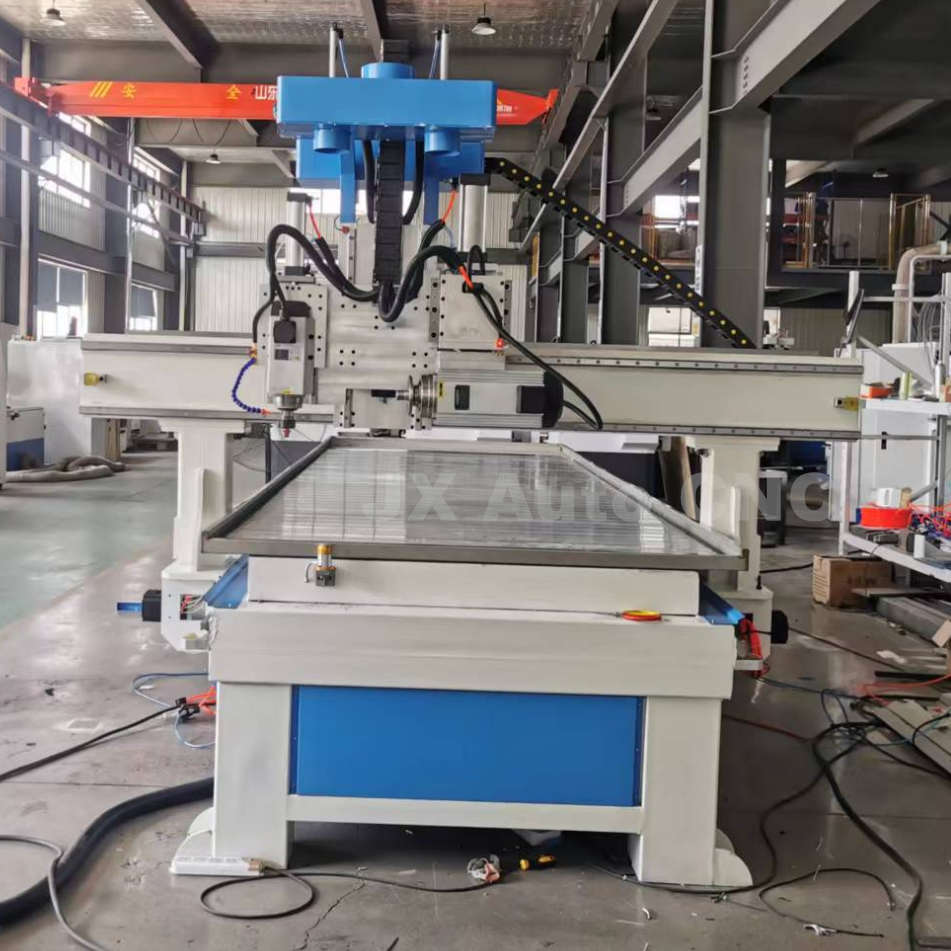

The spindle saw CNC router can process materials of different sizes, specially designed for various processing, such as
cutting wood mdf sheet ,and engraving on MDF wood sheet .Machine install with water tank table
can also used for cutting marble
1. The working area of X, Y, Z:1300*2500*200mm
2. Rotate cutting saw
3. 5.5kw marble working spindle
4. YAKO 2811 driver with strong power
5. Tslot PVC table with a water tank
6. Dust cover to promise clean of the guide and rack
7. Double work head suitable for cutting and engraving on different materials

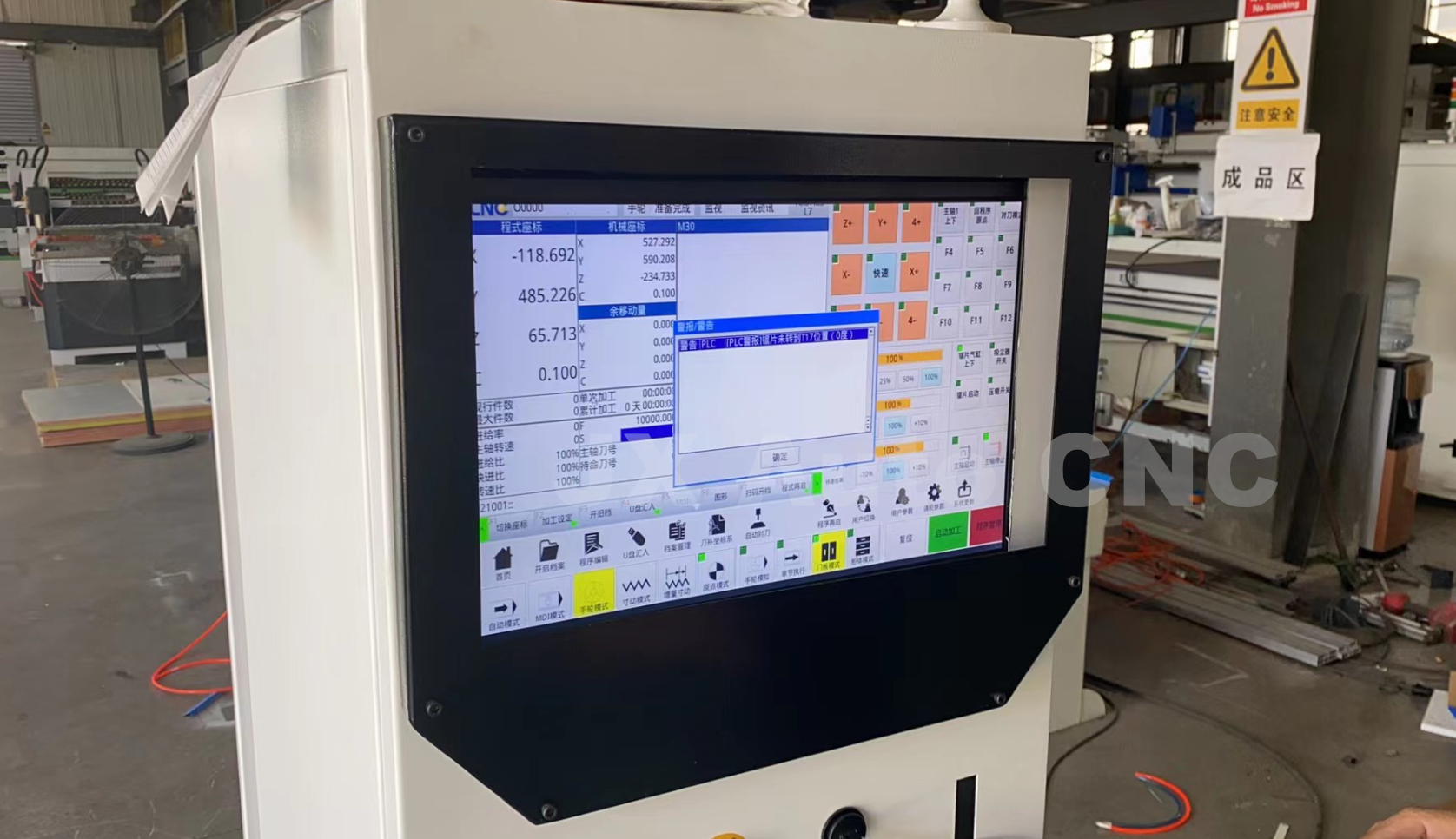

8. DHTN PC Controller system
| Model Name | JX 1325M wood cnc router |
| X, Y-Axis Travel | 1300*2500mm(4*8ft), Optional: 1300X3000mm(4X10ft), 1500X3000mm(5X10ft), 2000X3000mm. 2000X4000mm. |
| Z-Axis Travel | 200, Optional: 300mm,400mm, 500mm,600mm. |
| Spindle Power | 5.5KW Marble engraving spindle with 24000RPM. ER25 |
| Drive System X, Y, and Z-axis | German Helical Rack and Pinion for X and Y-axis. And Z-axis with TBI ball screw |
| Transmission X, Y, and Z-axis | HIWIN/THK Rail Linear guide and bearings. |
| Motor for X, Y, and Z | Stepper motor / AC Servo motor |
| Machine Structure | Thicken weld steel tube machine body. Rigid cast steel gantry and side support and table, water tank |
| Compatible Software | Type3, Ucancam, Artcam, etc. |
| Other Names | marble engraving machine, marble carving machine, marble router machine, CNC marble engraving machine, granite marble cutting machines, marble stone cutting machine, marble engraving tools, CNC stone router machine |
| Suitable Materials &Applications | Marble, bluestone, jade crystal, agate, glass, plastic cement, ceramic, stainless steel, titanium, copper, iron, aluminum, bamboo, and other hardwood surfaces of virtue and sculpture. |
| Gross Weight | 2000 KGS |
| Package Size | 3900*2250*1950mm |
1、I need a CNC router, can you give me some suggestions?
A : Sure, we will give suggestions of the most suitable machine. Before that, we need to know some information, such as effective processing area, materials, etc., to determine the main parameters.
2. Which kind of materials can be processed on this machine?
A: Wood, mdf, stone, acrylic, glass, plastic, foam, aluminium, copper.
and almost all kinds of non-steel materials.
3. Are you a factory or trading company?
A : We are the manufacturer and we have 10 years factory experience As only the machine made by ourself, the quality can be trusted, and the most important thing is that we can do better after-sales service We know how to fix the problem of every part easily, so welcome to visit to our factory.
4.How should I pay for my order ?
A : You need to pay 30% as prepayment at first, then we will start to make production. When the machine is completed, we will send pictures or videos to you, and then you need to pay the balance.We will ship the machine to you after we receive your full payment.
5.How long is the delivery time?
A : For standard machines it will be 7-10 days: For non-standard machines and customized machines according to clients’ specific requirements. it will be 15 to 30 days.

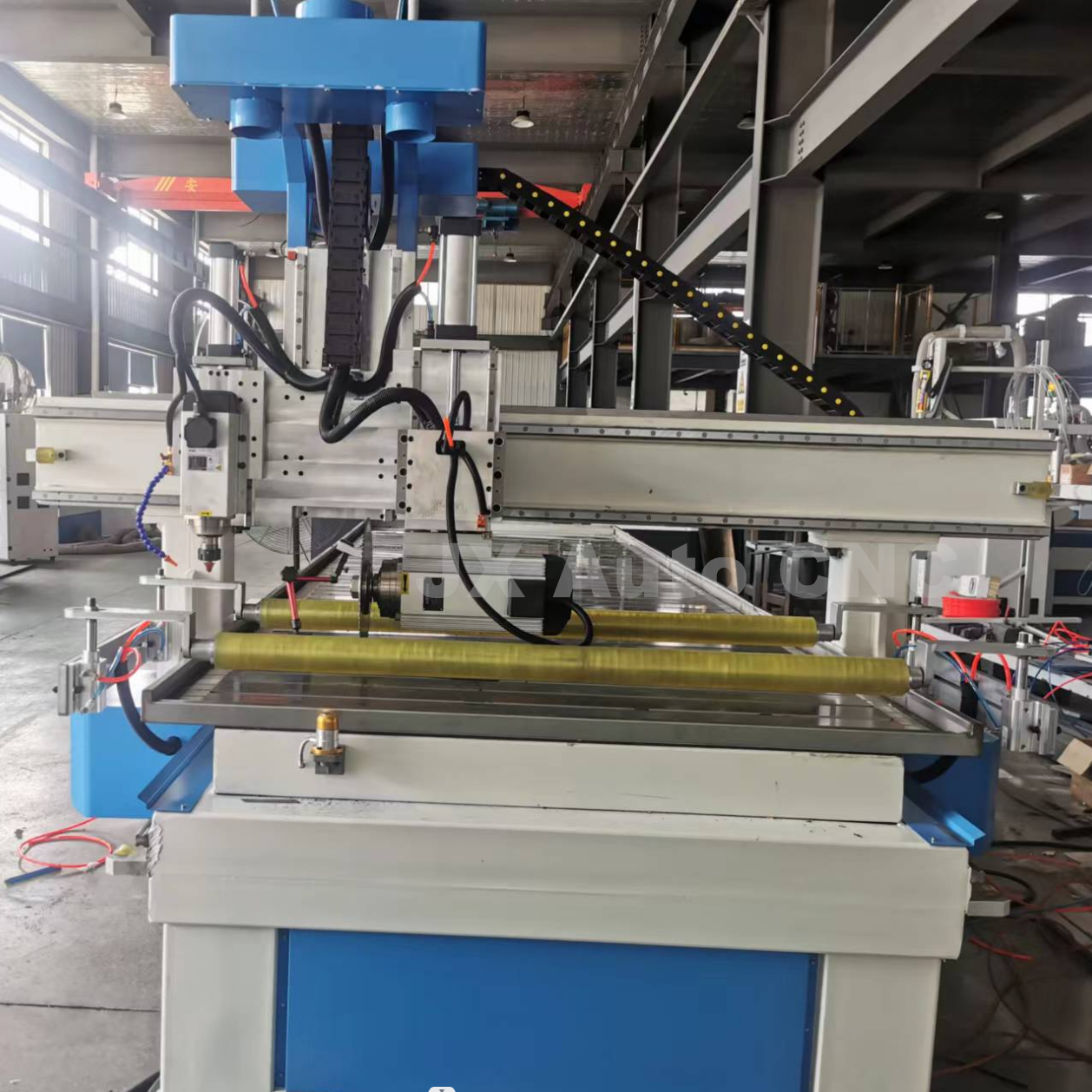

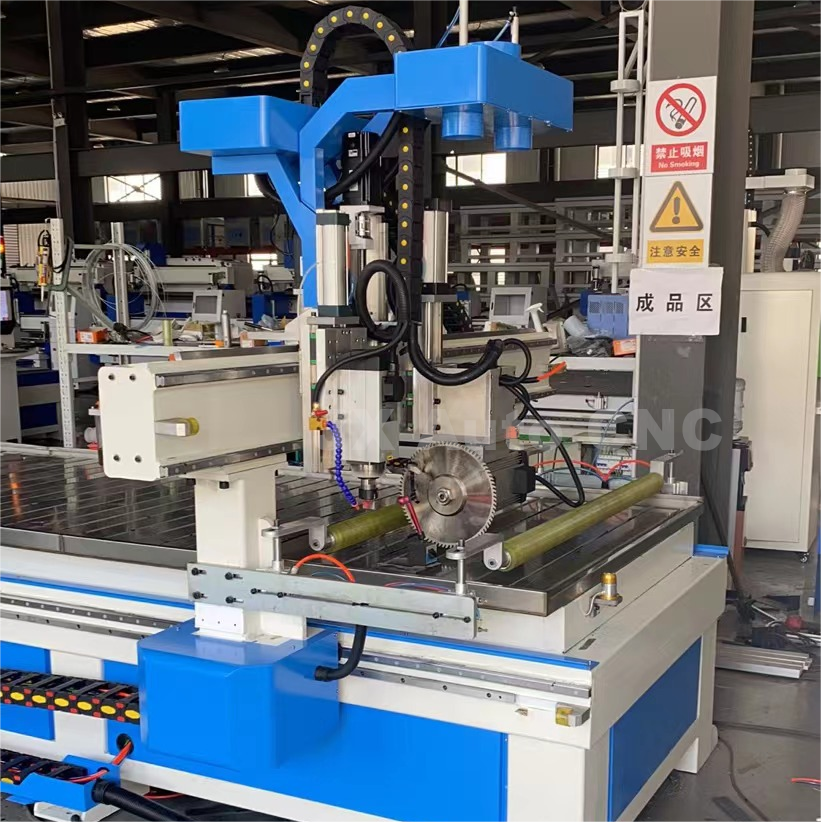

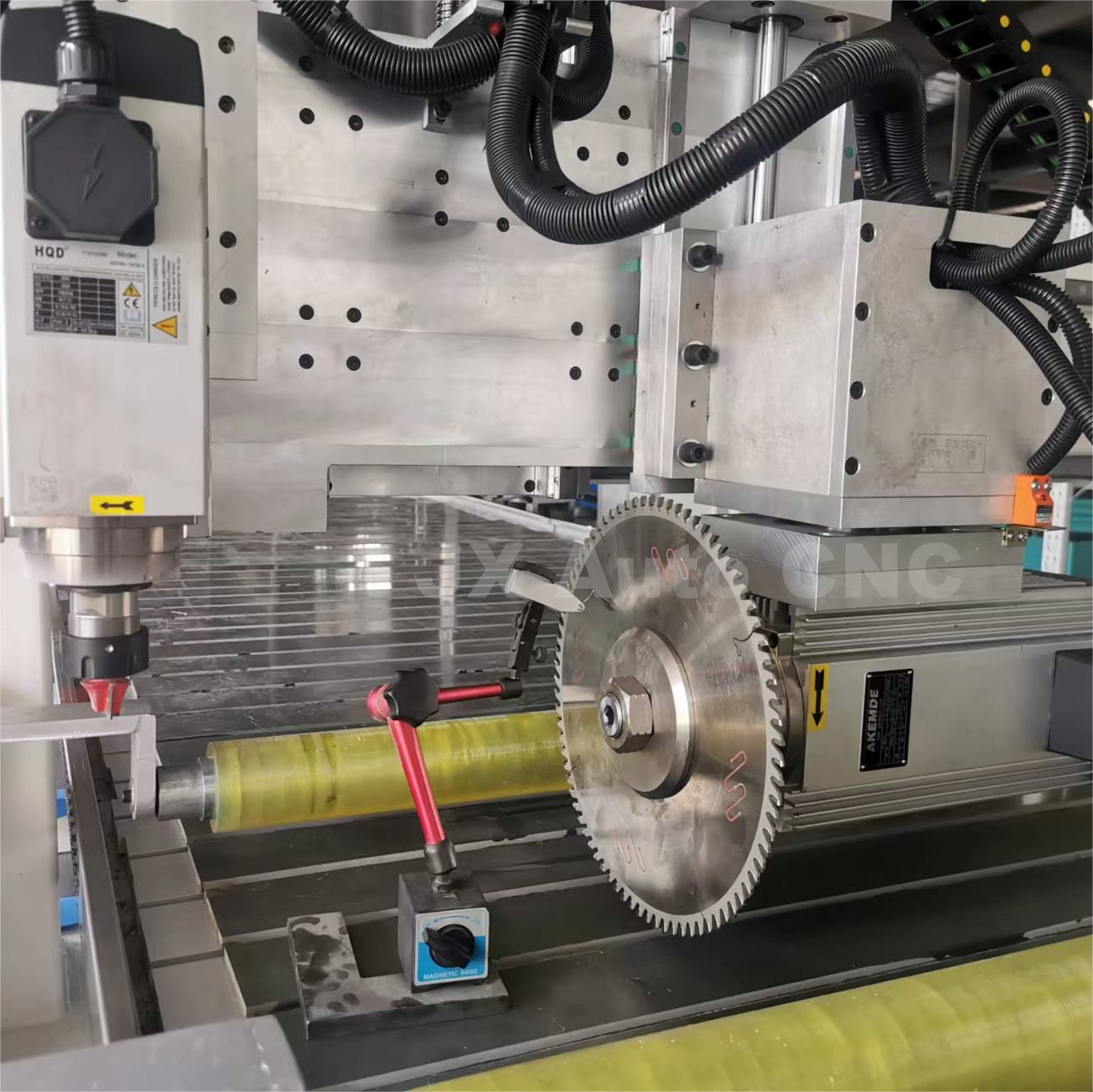

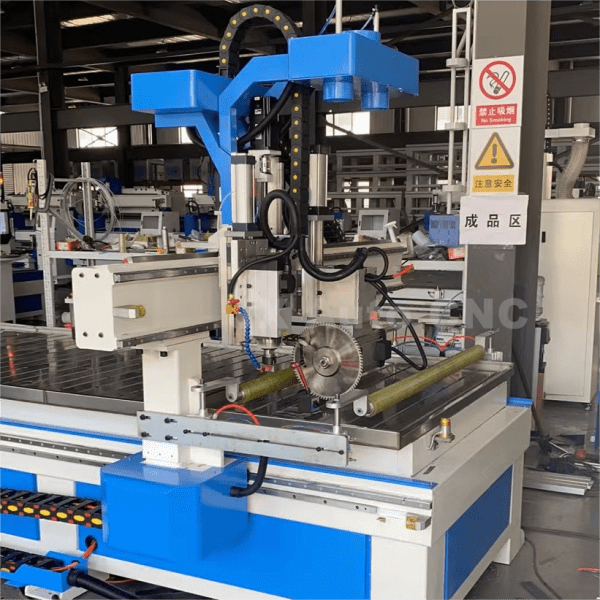

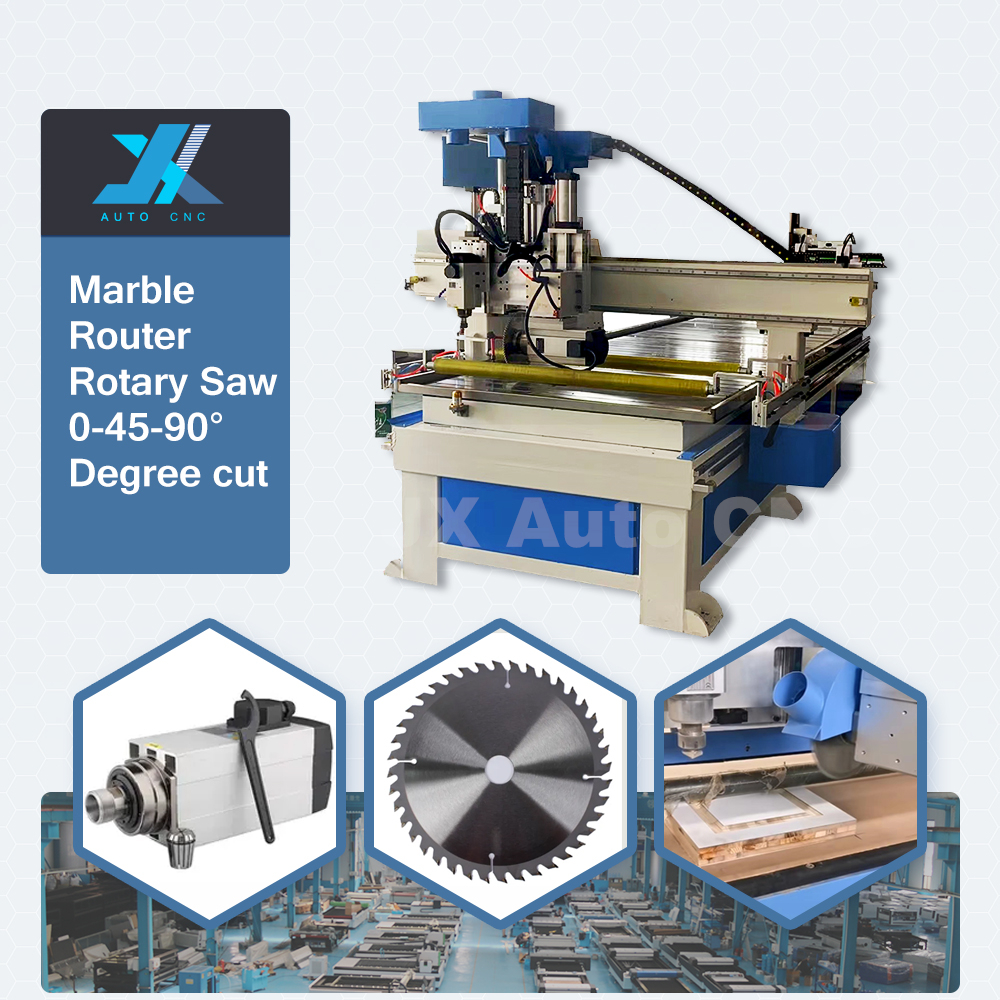

spindle with rotary circle saw

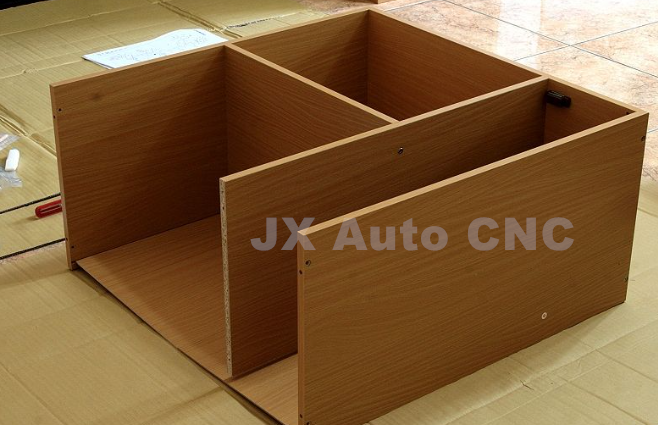

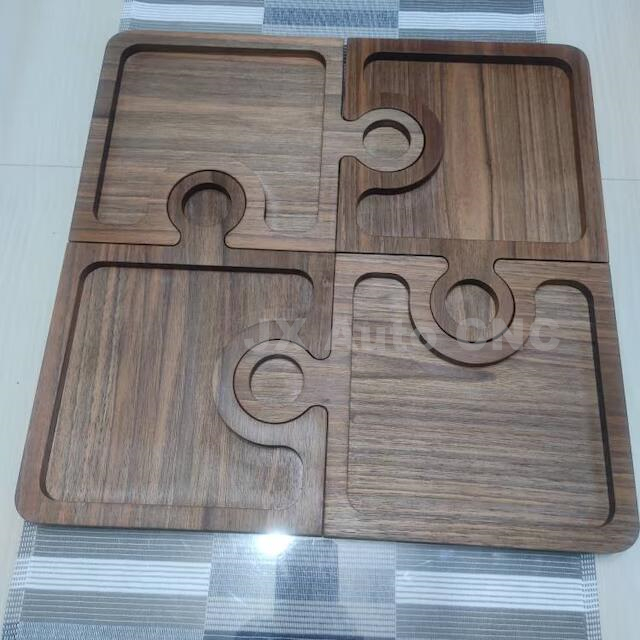

1.Furniture: wooden door and furniture, windows, tables and chairs,cabinets and panels, 3D wave plate,MDF,computer desk,musical instruments,etc

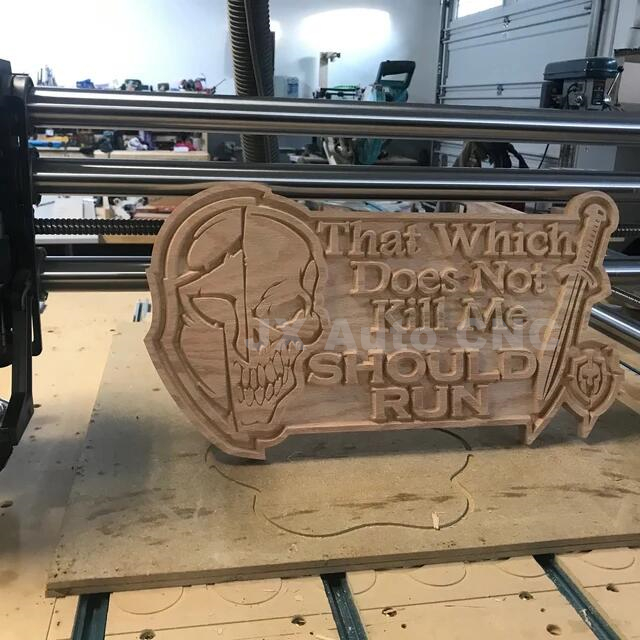

2.Advertising: billboard, logo,sign,3D characters cutting,acrylic cutting,LED/neon channel,literal-hole cut,light-box mold,stamp,mound,etc
3.Board processing: insulation, plastic chemical components, PCB, car body, bowling track, ABS, PP, PE, etc.
