Price Range : $2900 to $3300 / Set based on the configuration
Brand : Jx Auto CNC
Model : JX-21 bit
Category : Furniture CNC-Side Hole Driller
Payment: TT, Visa, Mastercard, Credit Cards, Paypal
Supply Ability : 200 Sets In Stock / Month
Policy : Shopping, Return, Refund Policy

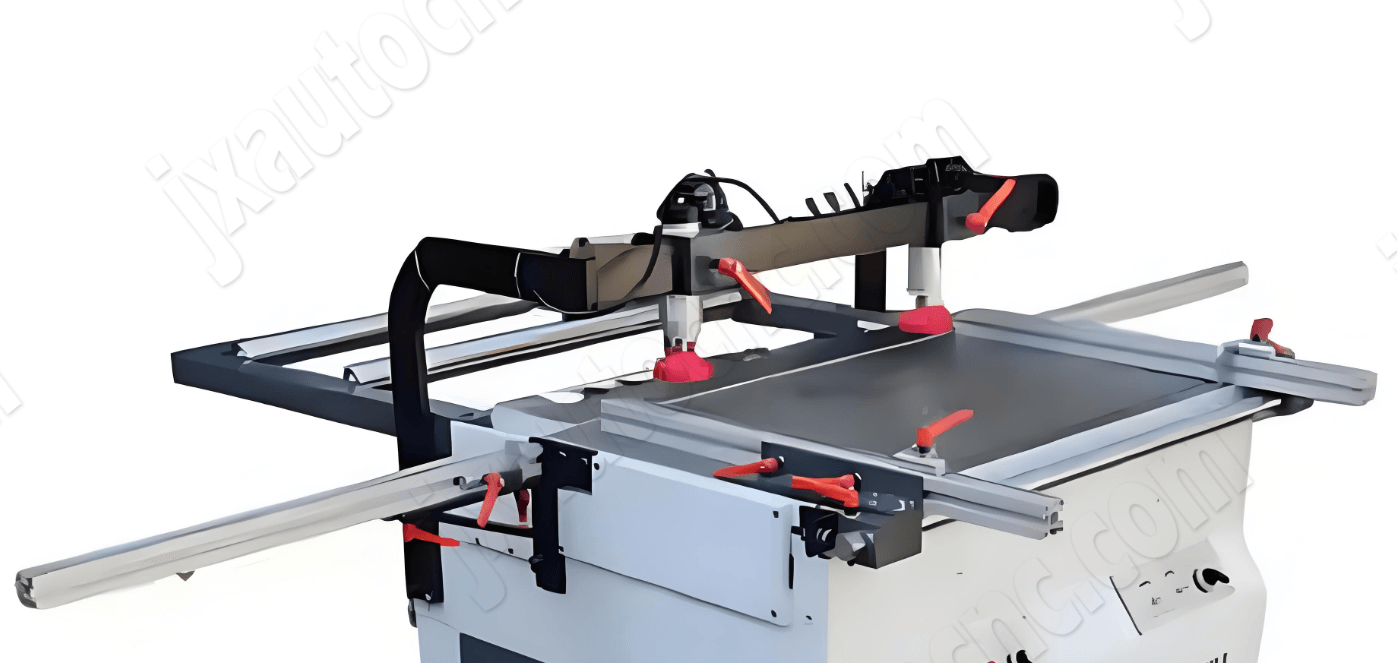

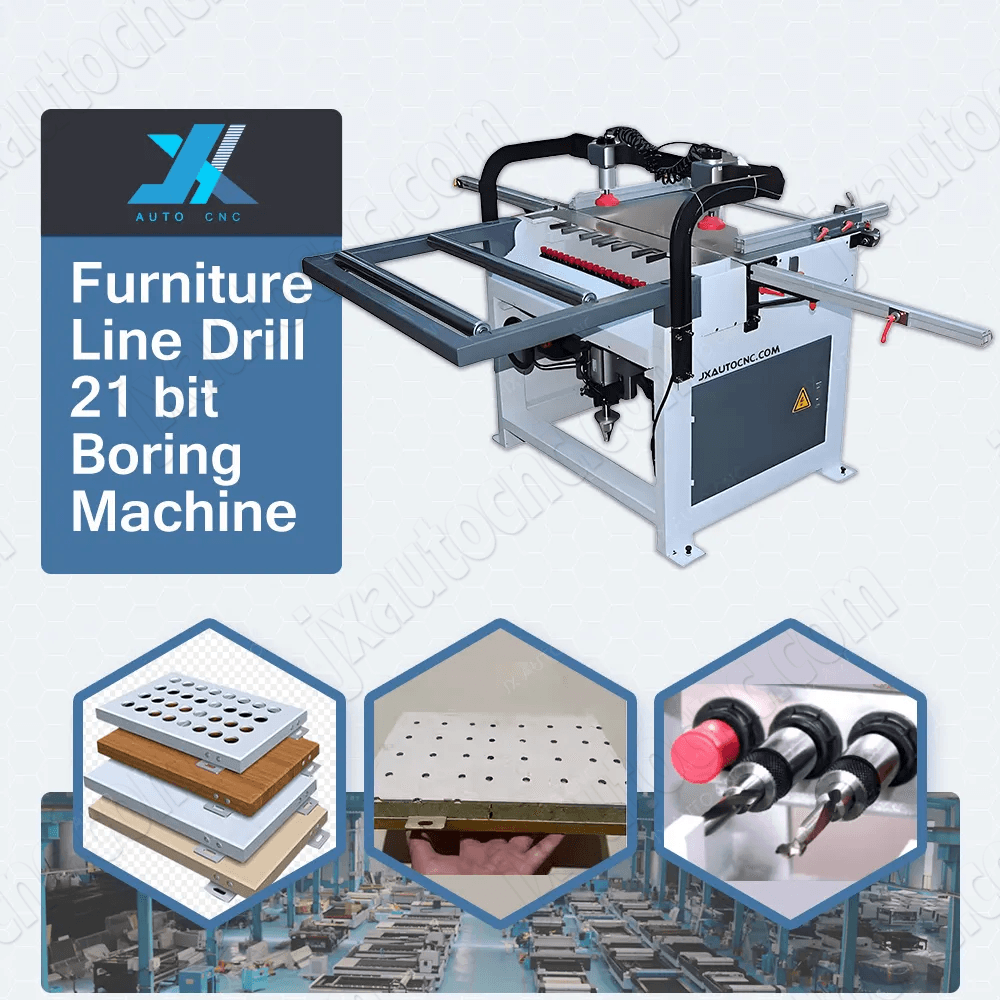

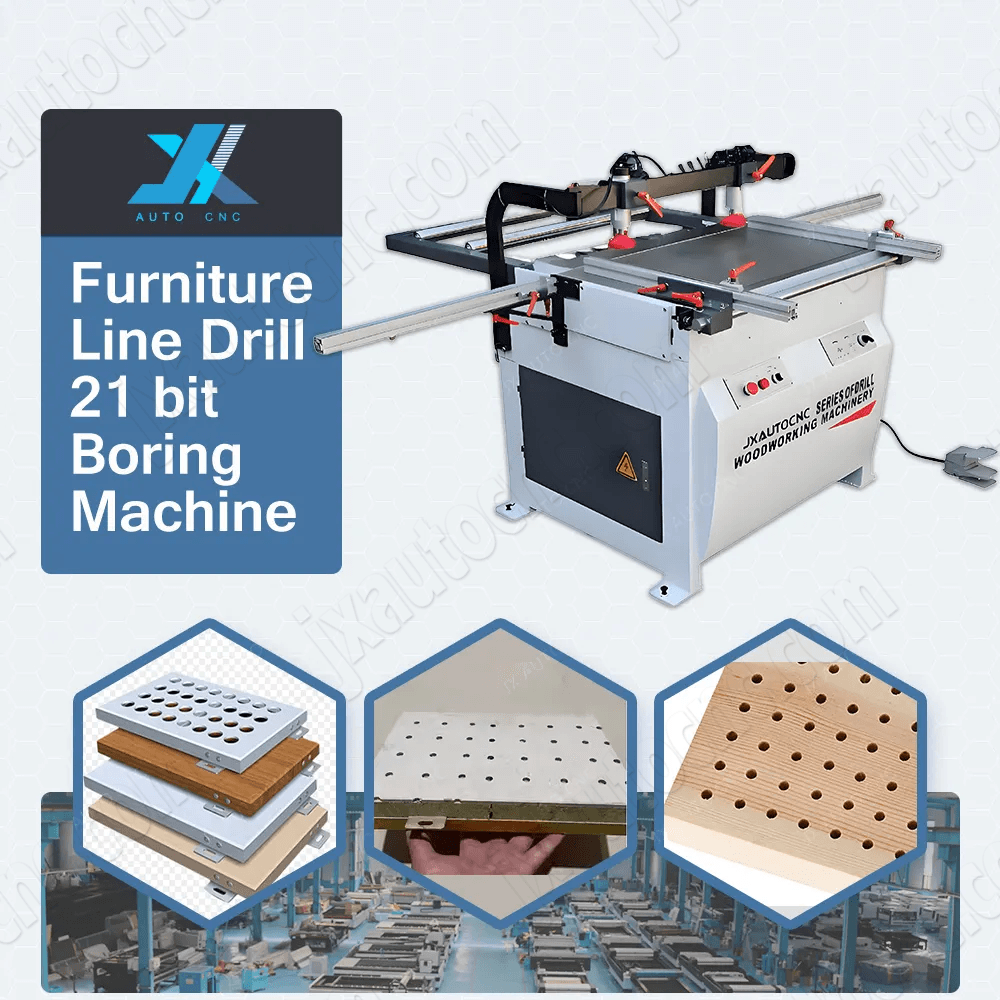

The overall frame structure, the table, column and beam are made of cast iron; the unique turnover structure, with 0-90 ° free rotation function, solves the special angle vacancy demand of some products. The machine is equipped with a locking device and a new auxiliary backer, which makes the performance of the machine more stable and durable.

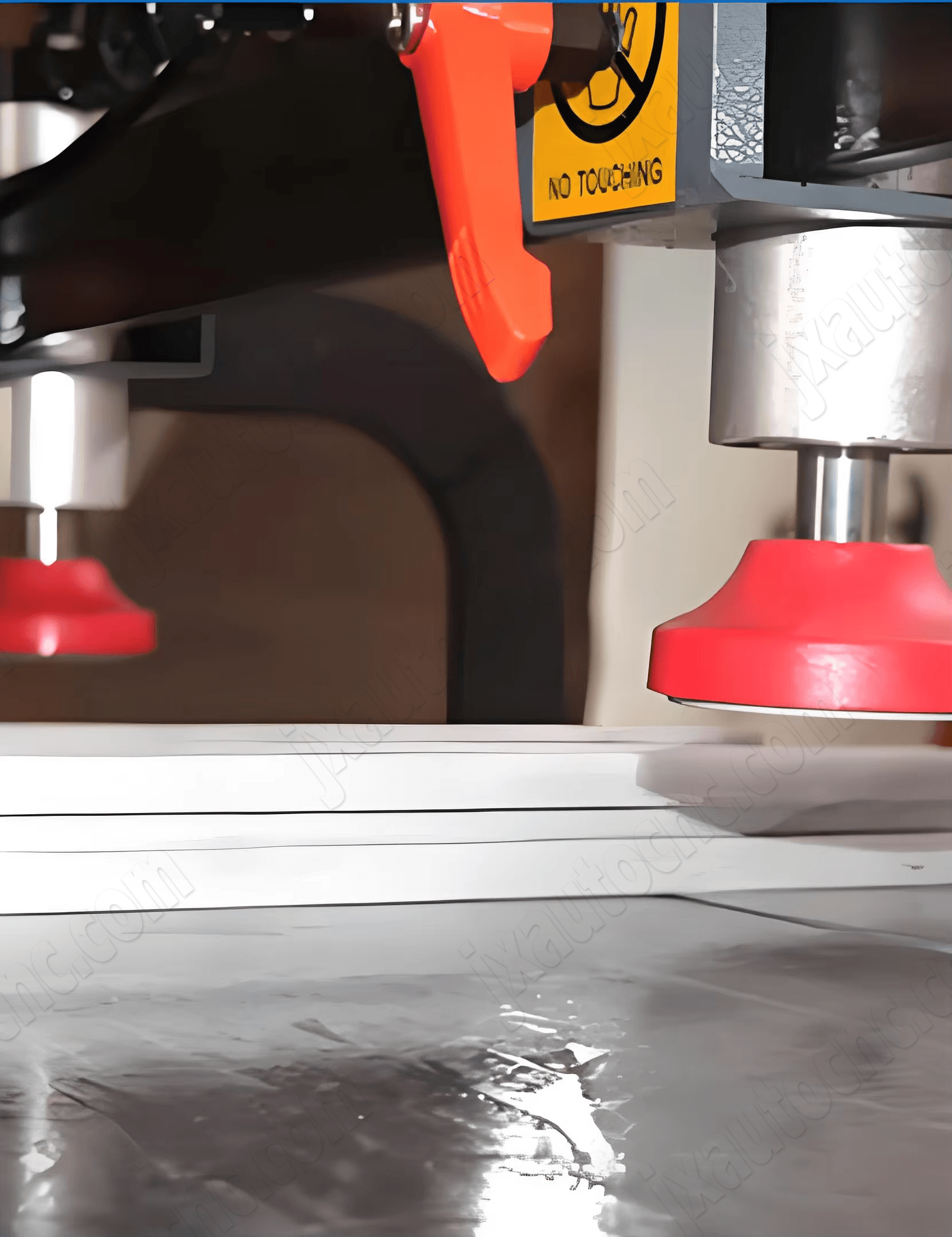

1.Pressing cylinder：Quick and accurate positioning makes the machine operation more stable and ensures work efficiency

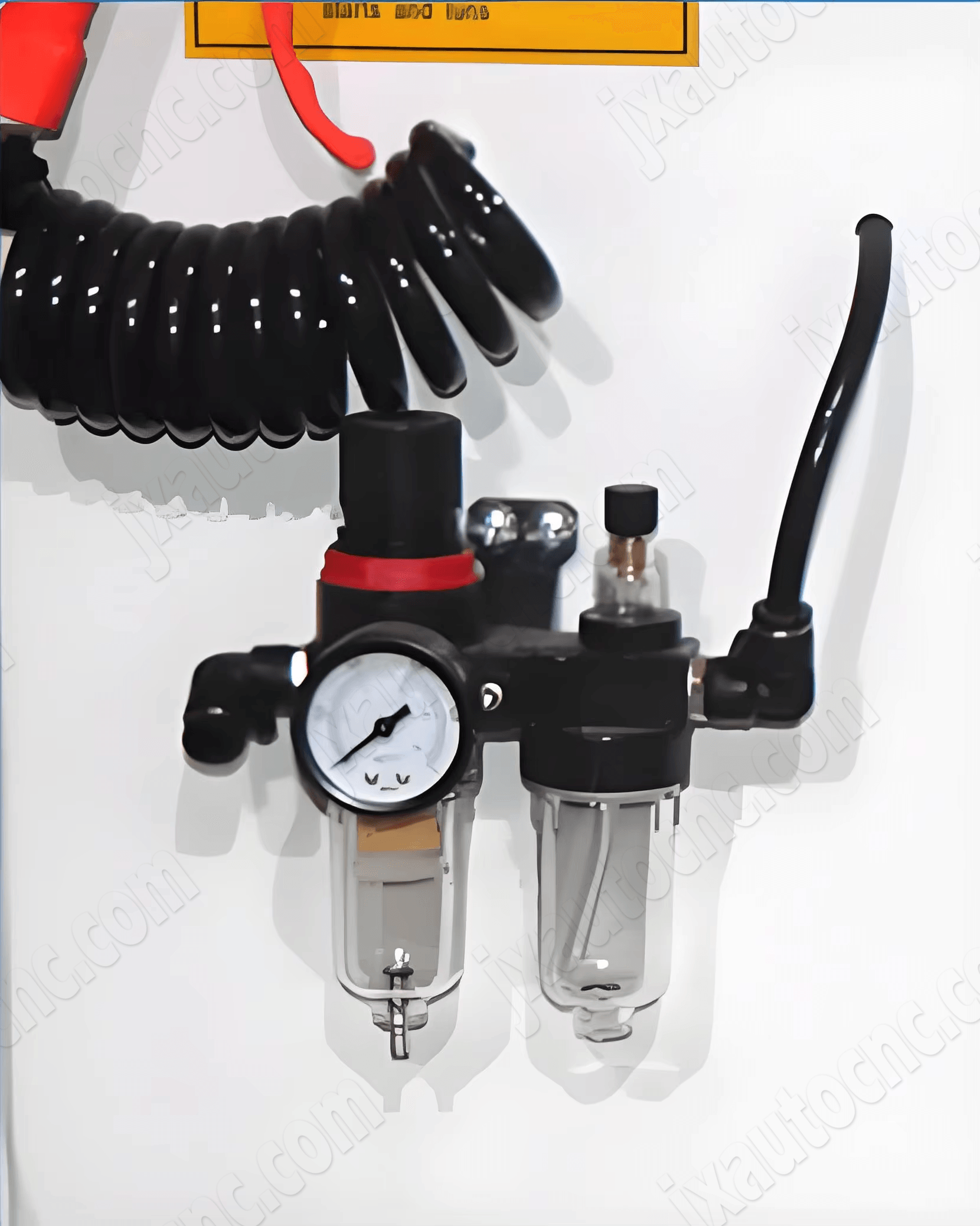

2.Oil-water separator：The oil-water separator can effectively prevent water vapor in the air from entering the machine, ensuring the safety of the machine during use

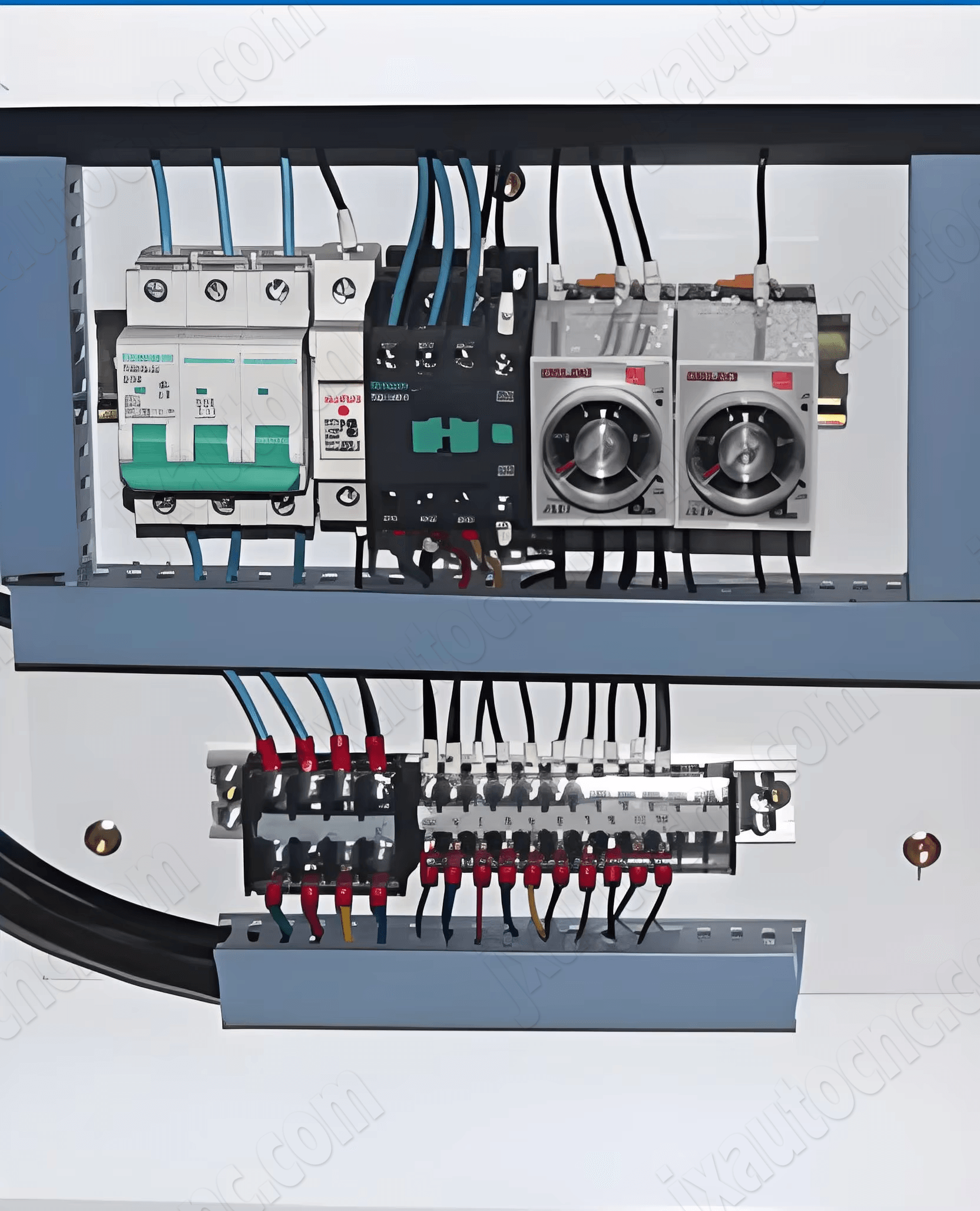

3.Main electrical control box：The internal circuit is safe and stable, the circuit is connected, and the operation is more stable and safe
| Motor power | 1.5KW*1 Piece | 1.5KW*2 Piece |
|---|---|---|
| Maximum drilling diameter | Single hole φ35mm | |
| Maximum drilling depth | 60mm | |
| Working air pressure | 0.6-0.8mpa | |
| Number of drill shafts | 21 Axes*1 Row | 21 Axes*2 Rows |
| main spindle speed | 2840r/min | |
| Installation dimension | 2360*1600*1420mm | 3200*2500*1620mm |
1、I need a CNC router, can you give me some suggestions?
A : Sure, we will give suggestions of the most suitable machine. Before that, we need to know some information, such as effective processing area, materials, etc., to determine the main parameters.
2. Which kind of materials can be processed on this machine?
A: Wood, mdf, stone, acrylic, glass, plastic, foam, aluminium, copper.
and almost all kinds of non-steel materials.
3. Are you a factory or trading company?
A : We are the manufacturer and we have 10 years factory experience As only the machine made by ourself, the quality can be trusted, and the most important thing is that we can do better after-sales service We know how to fix the problem of every part easily, so welcome to visit to our factory.
4.How should I pay for my order ?
A : You need to pay 30% as prepayment at first, then we will start to make production. When the machine is completed, we will send pictures or videos to you, and then you need to pay the balance.We will ship the machine to you after we receive your full payment.
5.How long is the delivery time?
A : For standard machines it will be 7-10 days: For non-standard machines and customized machines according to clients’ specific requirements. it will be 15 to 30 days.
