Price Range : $3300-$3500/ Set based on the configuration
Brand : Jx Auto CNC
Model : JX-5 axis shoes model making machine
Category : CNC Router-Metal Milling
Payment: TT, Visa, Mastercard, Credit Cards, Paypal
Supply Ability : 200 Sets In Stock / Month
Policy : Shopping, Return, Refund Policy

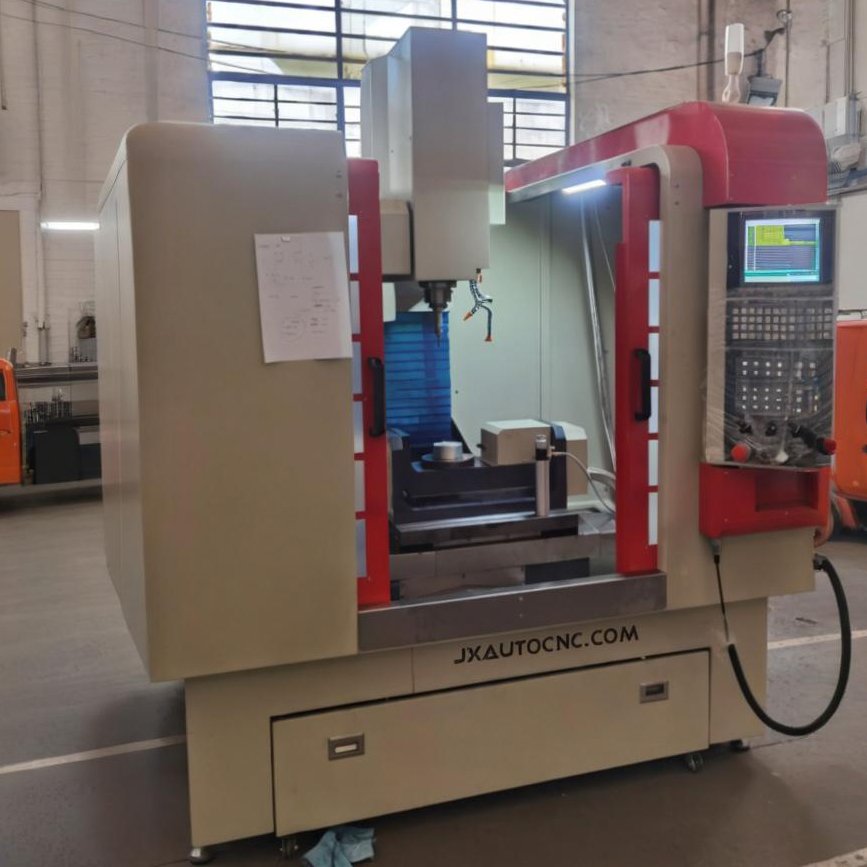

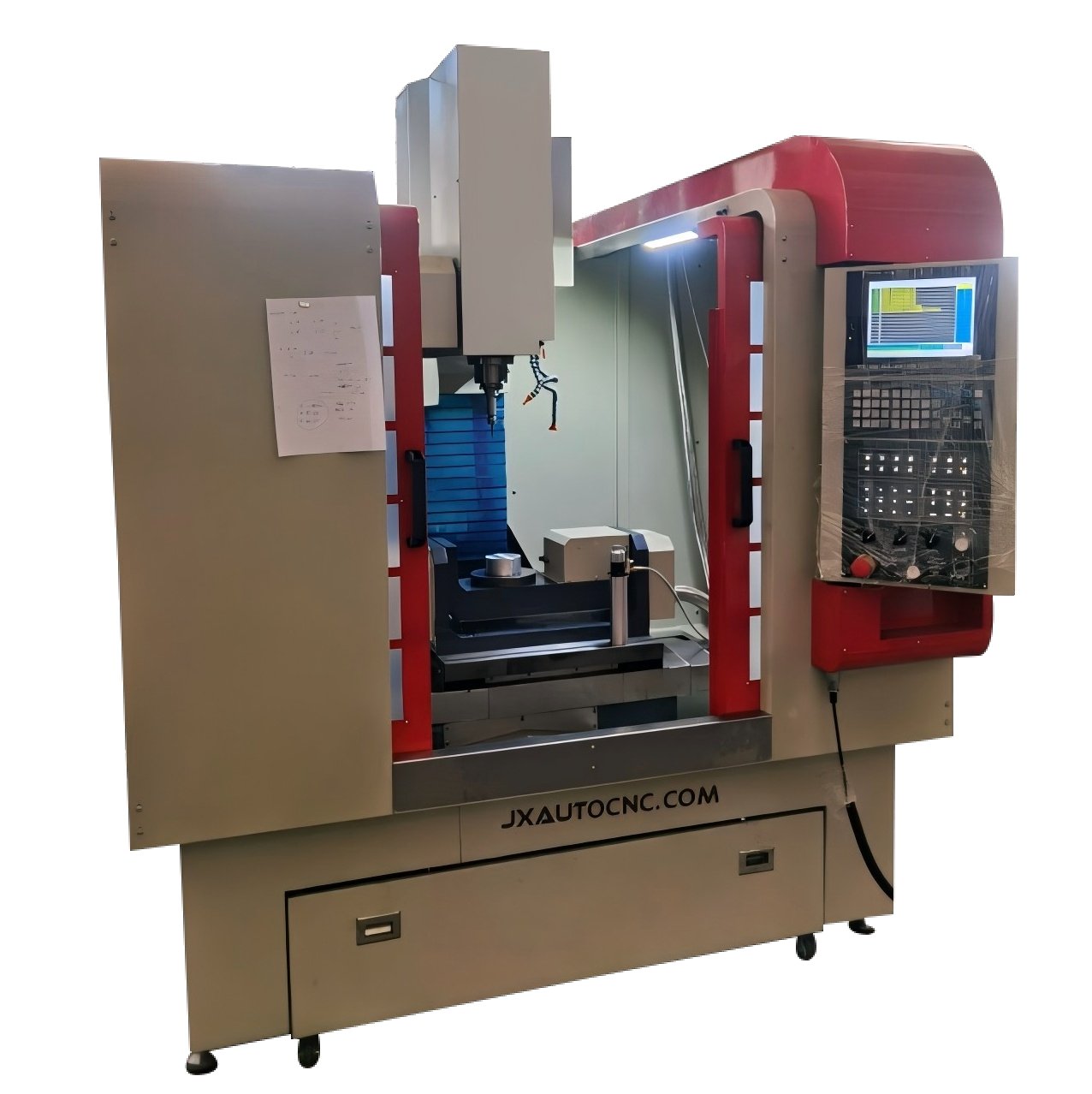

1.The machine body is made of gray cast iron, which is strong and durable.

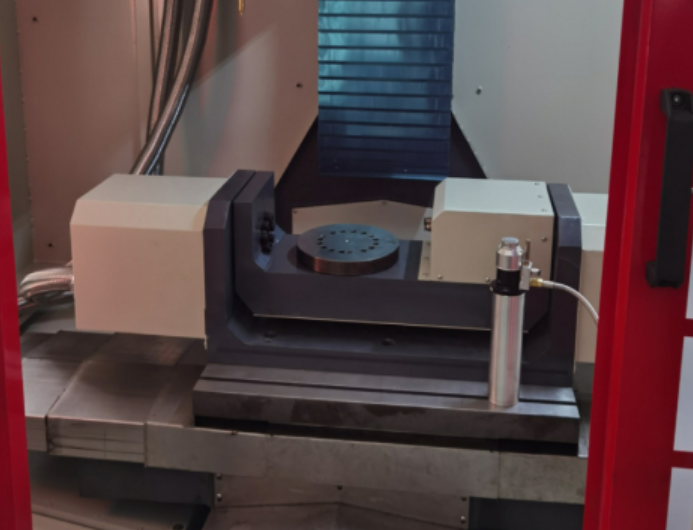

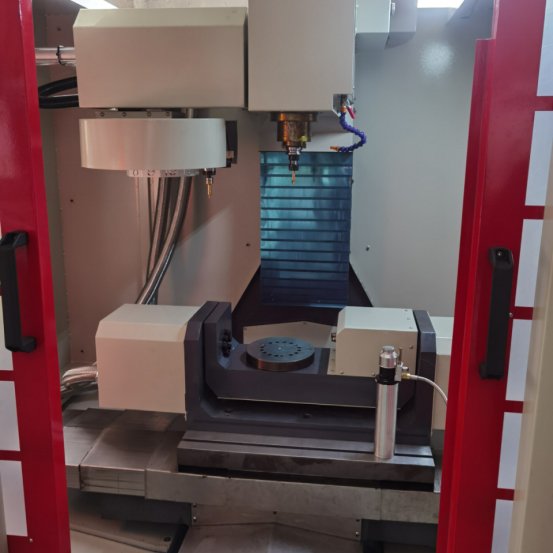

2.The rotary table is made of stainless steel.
3.The machine shell is a new sheet metal shell, with 2mm steel plate surface sprayed with plastic, and the color is subject to the color plate provided by the customer.

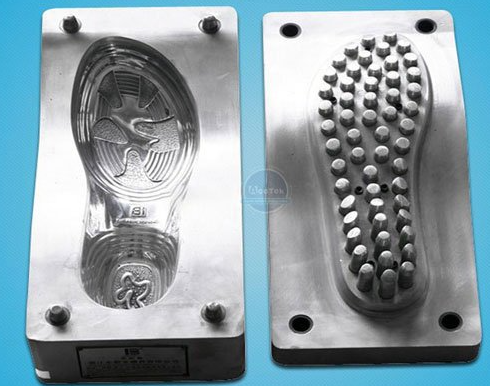

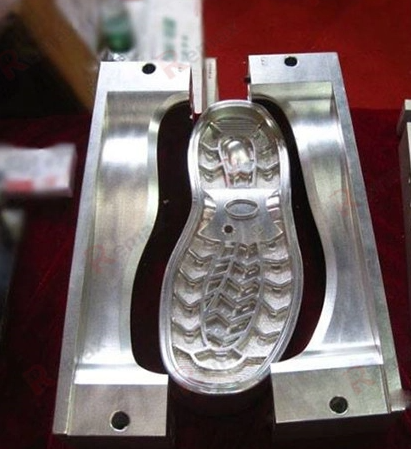

1.Processing sample display： Thanks to the high-speed spindle, the surface finish can be improved, and the surface roughness can reach about R0.2
2.Assembly details：Assembly is performed by experienced assembly engineers, with manual scraping and grinding to ensure high precision and high stability of the machine tool

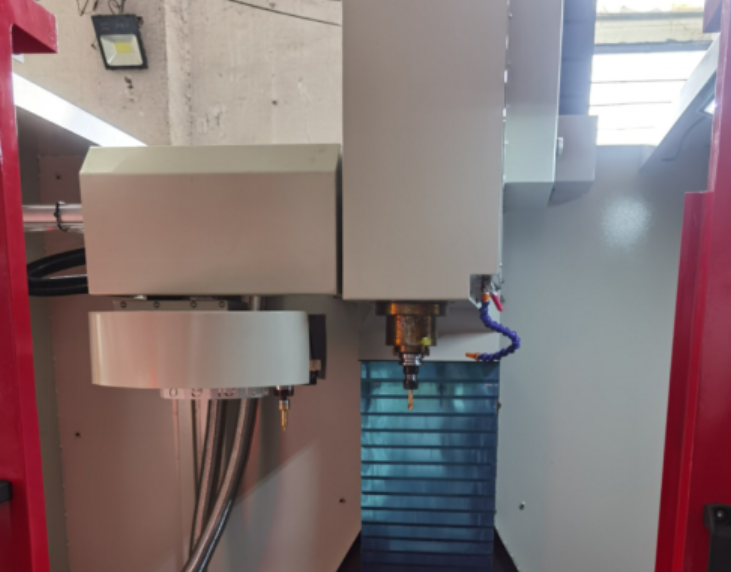

3. High speed spindle：The spindle speed is 24,000 RPM，5.5kw

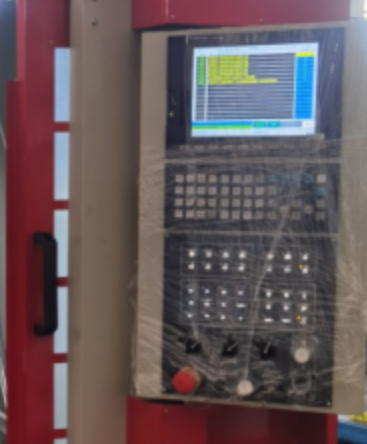

4. Control system：Stable performance, excellent function, memory location function
| Description | |
| Max. Working Speed | 15000mm |
| spindle motor | 24000 rpm, 5.5kw |
| control System | New generation 220MA, five-axis linkage + RTCP |
| servo Motor | New generation, Z axis 1.7kw (8Nm), XYAC axis 0.75kw (3Nm), tool magazine 0.4kw (1Nm) |
| three-axis travel | X500 Y400 Z500(Raised 200, travel unchanged) |
| five-axis travel | Diameter 300 x height 300 (short handle) |
| three-axis straightness | 0.01 / 200mm |
| three-axis verticality | 0.01/ 200mm |
| workbench flatness | 0.01 / 200mm |
| parallelism of rotation axis | 0.01 / Diameter 200mm |
| rotary table plane runout | 0.01 / 360 degrees / diameter 150mm |
1、I need a CNC router, can you give me some suggestions?
A : Sure, we will give suggestions of the most suitable machine. Before that, we need to know some information, such as effective processing area, materials, etc., to determine the main parameters.
2. Which kind of materials can be processed on this machine?
A: Wood, mdf, stone, acrylic, glass, plastic, foam, aluminium, copper.
and almost all kinds of non-steel materials.
3. Are you a factory or trading company?
A : We are the manufacturer and we have 10 years factory experience As only the machine made by ourself, the quality can be trusted, and the most important thing is that we can do better after-sales service We know how to fix the problem of every part easily, so welcome to visit to our factory.
4.How should I pay for my order ?
A : You need to pay 30% as prepayment at first, then we will start to make production. When the machine is completed, we will send pictures or videos to you, and then you need to pay the balance.We will ship the machine to you after we receive your full payment.
5.How long is the delivery time?
A : For standard machines it will be 7-10 days: For non-standard machines and customized machines according to clients’ specific requirements. it will be 15 to 30 days.

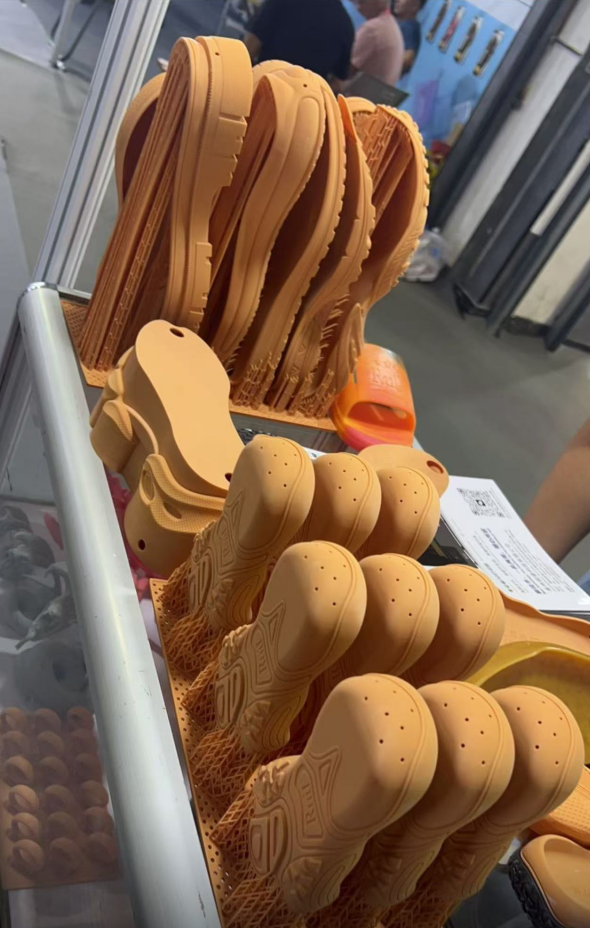

Widely used in shoe mold factories and footwear R&D workshops for metal shoe mold machining. Suitable for roughing, semi-finishing and fine engraving of shoe last, sole and heel molds. It can also be adopted for processing metal hardware molds, logo embossing molds and other precision curved surface workpieces.
